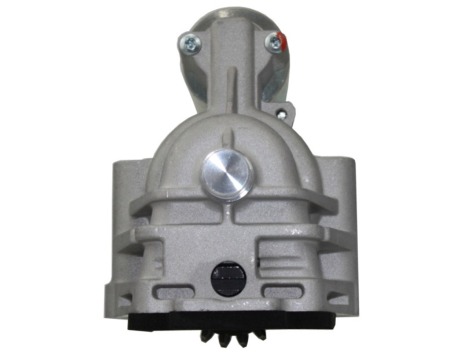

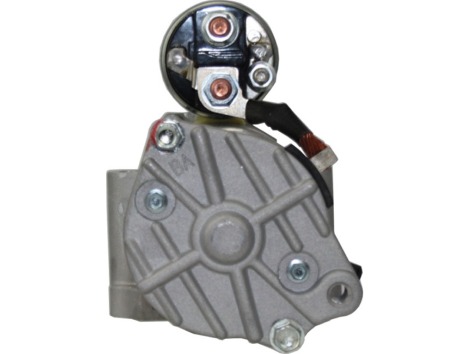

SG0386		STARTER MOTOR

Aftermarket/OE/Rebuild
SG0386
SG0386RB

RB=

Technical sheets

Voltage (V)

Kw (kW)

2,2

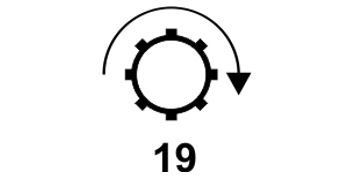

No./teeth (Z)

Rotation (ROT)

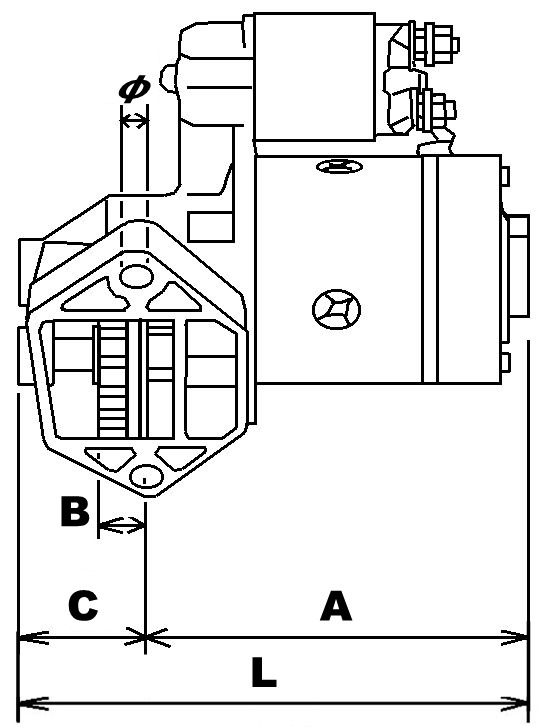

Drive dist. (B)

36,00

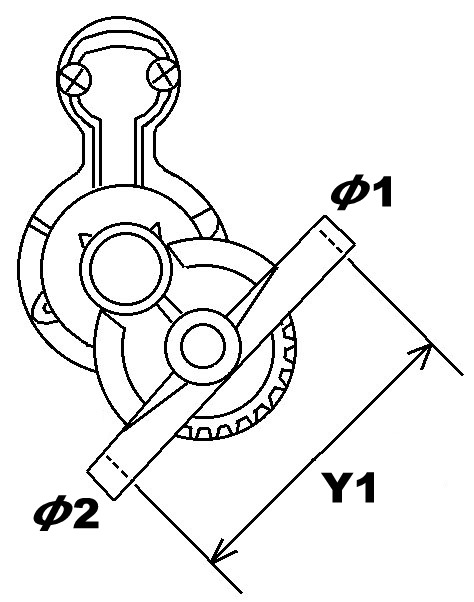

Mount. Hole (Ø1)

10,50

Mount. Hole (Ø2)

10,50

Dist./back (A)

173,00

Dist./front (C)

79,00

Dist. Mm (Y1)

88,85

Total length mm (L)

250,80

O.E.

S9002

BOSCH

0986021351

CARGO

112794

112821

CS1245

DELCO R.

DRS3797

FORD	1120215	1140110	1S7U11000BA	1S7U-11000-BA
	1S7U11000BB	1S7U-11000-BB	1S7U11000BC	1S7U-11000-BC
	2S7T11000DA	2S7T-11000-DA	2S7T11000DB	2S7T-11000-DB
	2S7T11000DC	2S7T-11000-DC	2S7U11000DA	2S7U-11000-DA
	7878768	YC1U11000AB	YC1U-11000-AB	YC1U11000AC
	YC1U-11000-AC	YC1U11000AD	YC1U-11000-AD	YC1U11000AE
	YC1U-11000-AE	YC1U11000AF	YC1U-11000-AF	YC1U11000AG
	YC1U-11000-AG	YC3U11000AA

ISKRA

AZE2189

AZE2226

LUCAS

LRT00202

LRT202

MARELLI

63118001

63187051

VALEO

458371

458470

VS801

VISTEON	1096338	1120215	1140110	1151641
	1214371	20-100-01022	4078768

Vehicles

FORD	MONDEO III (B5Y)
Type		kW	Hp	cc	Engine	Year
2.0 16V DI / TDDi / TDCi		66	90	1998	D5BA, SDBA	01/10/2000-01/03/2007

2.0 16V TDDi / TDCi		85	115	1998	D6BA, HJBA, HJBB, HJBC, HJBE	01/10/2000-01/03/2007

2.0 TDCi		96	130	1998	FMBA, N7BA, N7BB	01/10/2001-01/03/2007

2.2 TDCi		110	150	2198	QJBC, QJBD	01/09/2004-01/03/2007

2.2 TDCi		114	155	2198	QJBA, QJBB	01/09/2004-01/03/2007

	MONDEO III Tre volumi (B4Y)
Type		kW	Hp	cc	Engine	Year
2.0 16V DI / TDDi / TDCi		66	90	1998	D5BA, SDBA	01/10/2000-01/03/2007

2.0 16V TDDi / TDCi		85	115	1998	D6BA, HJBA, HJBB, HJBC, HJBE	01/10/2000-01/03/2007

2.0 TDCi		96	130	1998	FMBA, N7BA, N7BB	01/10/2001-01/03/2007

2.2 TDCi		110	150	2198	QJBC, QJBD	01/09/2004-01/03/2007

2.2 TDCi		114	155	2198	QJBA, QJBB	01/09/2004-01/03/2007

	MONDEO III Turnier (BWY)
Type		kW	Hp	cc	Engine	Year
2.0 16V DI / TDDi / TDCi		66	90	1998	D5BA, SDBA	01/10/2000-01/03/2007

2.0 16V TDDi / TDCi		85	115	1998	D6BA, HJBA, HJBB, HJBC, HJBE	01/10/2000-01/03/2007

2.0 TDCi		96	130	1998	FMBA, N7BA, N7BB	01/10/2001-01/03/2007

2.2 TDCi		110	150	2198	QJBC, QJBD	01/09/2004-01/03/2007

2.2 TDCi		114	155	2198	QJBA, QJBB	01/09/2004-01/03/2007

	TRANSIT Autobus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Type		kW	Hp	cc	Engine	Year
2.0 DI (F_E_, F_F_, F_G_)		55	75	1998	D3FA	01/08/2000-01/05/2006

2.0 DI (F_E_, F_F_, F_G_)		63	86	1998	F3FA	01/08/2000-01/05/2006

2.0 DI (F_E_, F_F_, F_G_)		74	100	1998	ABFA	01/08/2000-01/05/2006

2.0 TDCi (F_F_, F_E_, F_G_)		92	125	1998	FIFA	01/08/2002-01/05/2006

2.4 DI (F_B_, F_C_, F_A_)		66	90	2402	D2FA, D2FB	01/01/2000-01/05/2006

2.4 DI RWD (F_B_, F_C_)		55	75	2402	F4FA	01/01/2000-01/05/2006

2.4 DI RWD (F_B_, F_C_, F_A_)		88	120	2402	D4FA	01/01/2000-01/05/2006

2.4 TDCi		74	100	2402	PHFA, PHFC	01/04/2006-01/08/2014

2.4 TDCi		85	115	2402	JXFA, JXFC	01/04/2006-01/08/2014

2.4 TDCi		101	137	2402	H9FA	01/03/2004-01/05/2006

2.4 TDCi		103	140	2402	H9FD	01/04/2006-01/08/2014

2.4 TDCi 4x4		103	140	2402	H9FB	01/11/2006-01/08/2014

2.4 TDE		85	115	2402	FXFA	01/03/2004-01/05/2006

2.4 TDE (F_C_, F_B_, F_A_)		92	125	2402	DOFA	01/07/2001-01/05/2006

	TRANSIT Furgone (FA_ _)
Type		kW	Hp	cc	Engine	Year
2.0 DI (FAE_, FAF_, FAG_)		55	75	1998	D3FA	01/08/2000-01/05/2006

2.0 DI (FAE_, FAF_, FAG_)		63	86	1998	F3FA	01/08/2000-01/05/2006

2.0 DI (FAE_, FAF_, FAG_)		74	100	1998	ABFA	01/08/2000-01/05/2006

2.0 TDCi		92	125	1998	FIFA	01/08/2002-01/05/2006

2.4 DI (FAA_, FAB_, FAC_, FAD_)		66	90	2402	D2FA, D2FB	01/01/2000-01/05/2006

2.4 DI RWD (FAA_, FAB_, FAC_, FAD_)		55	75	2402	F4FA	01/01/2000-01/05/2006

2.4 DI RWD (FAA_, FAB_, FAC_, FAD_)		88	120	2402	D4FA	01/01/2000-01/05/2006

2.4 TDCi		101	137	2402	H9FA	01/03/2004-01/05/2006

2.4 TDCi 4x4		103	140	2402	H9FB	01/11/2006-01/08/2014

2.4 TDCi RWD		74	100	2402	PHFA, PHFC	01/04/2006-01/08/2014

2.4 TDCi RWD		85	115	2402	JXFA, JXFC	01/04/2006-01/08/2014

2.4 TDCi RWD		103	140	2402	H9FB, H9FD	01/04/2006-01/08/2014

2.4 TDE		85	115	2402	FXFA	01/03/2004-01/05/2006

2.4 TDE		92	125	2402	DOFA	01/07/2001-01/05/2006

	TRANSIT Pianale piatto/Telaio (FM_ _, FN_ _)
Type		kW	Hp	cc	Engine	Year
2.0 DI (F_E_, F_F_)		55	75	1998	D3FA	01/08/2000-01/05/2006

2.0 DI (F_E_, F_F_)		63	86	1998	F3FA	01/08/2000-01/05/2006

2.0 DI (F_E_, F_F_)		74	100	1998	ABFA	01/08/2000-01/05/2006

2.0 TDCi (F_E_, F_F_)		92	125	1998	FIFA	01/08/2002-01/05/2006

2.4 DI (F_A_, F_B_, F_C_, F_D_)		55	75	2402	F4FA	01/01/2000-01/05/2006

2.4 DI (F_A_, F_B_, F_C_, F_D_)		66	90	2402	D2FA, D2FB, D2FE	01/01/2000-01/05/2006

2.4 DI (F_A_, F_B_, F_C_, F_D_)		88	120	2402	D4FA	01/01/2000-01/05/2006

2.4 TDCi		101	137	2402	H9FA	01/03/2004-01/05/2006

2.4 TDE		85	115	2402	FXFA	01/03/2004-01/05/2006

2.4 TDE		92	125	2402	DOFA	01/07/2001-01/05/2006

	TRANSIT Pianale piatto/Telaio (FM_ _, FN_ _, FF_ _)
Type		kW	Hp	cc	Engine	Year
2.4 TDCi 4x4		103	140	2402	H9FB	01/11/2006-01/08/2014

2.4 TDCi RWD		74	100	2402	PHFA, PHFC	01/04/2006-01/08/2014

2.4 TDCi RWD		85	115	2402	JXFA, JXFC	01/04/2006-01/08/2014

2.4 TDCi RWD		103	140	2402	H9FB, H9FD	01/04/2006-01/08/2014

JAGUAR	X-TYPE I (X400)
Type		kW	Hp	cc	Engine	Year
2.0 D		96	130	1998	FMBA, FMBB	01/07/2003-01/11/2009

2.2 D		107	146	2198	QJBA	01/01/2007-01/11/2009

2.2 D		110	150	2198	QJBA	01/10/2005-01/11/2009

2.2 D		114	155	2198	QJBA	01/10/2005-01/11/2009

	X-TYPE I Familiare (X400)
Type		kW	Hp	cc	Engine	Year
2.0 D		96	130	1998	FMBA, FMBB	01/02/2004-01/12/2009

2.2 D		107	146	2198	QJBA	01/01/2007-01/12/2009

2.2 D		110	150	2198	QJBA	01/10/2005-01/12/2009

2.2 D		114	155	2198	QJBA	01/10/2005-01/12/2009
