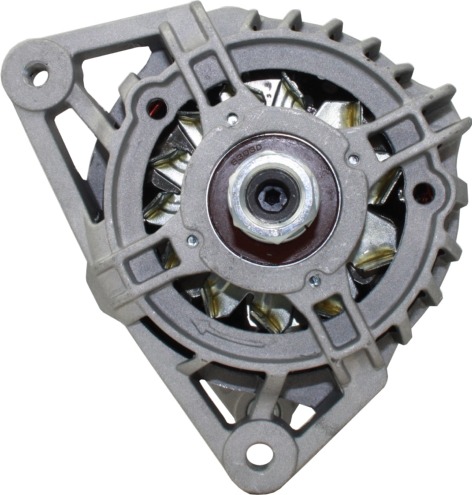

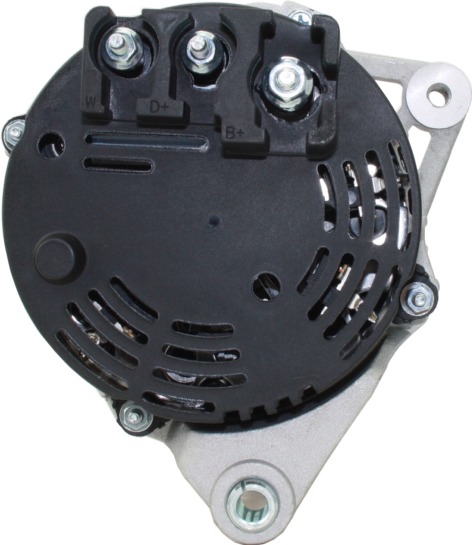

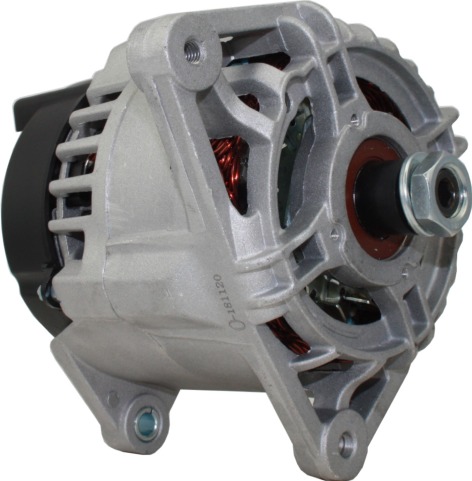

AG1312		ALTERNATOR

Aftermarket/OE/Rebuild
AG1312
AG1312RB

RB=

Technical sheets

Voltage (V)

Amp (Amp)

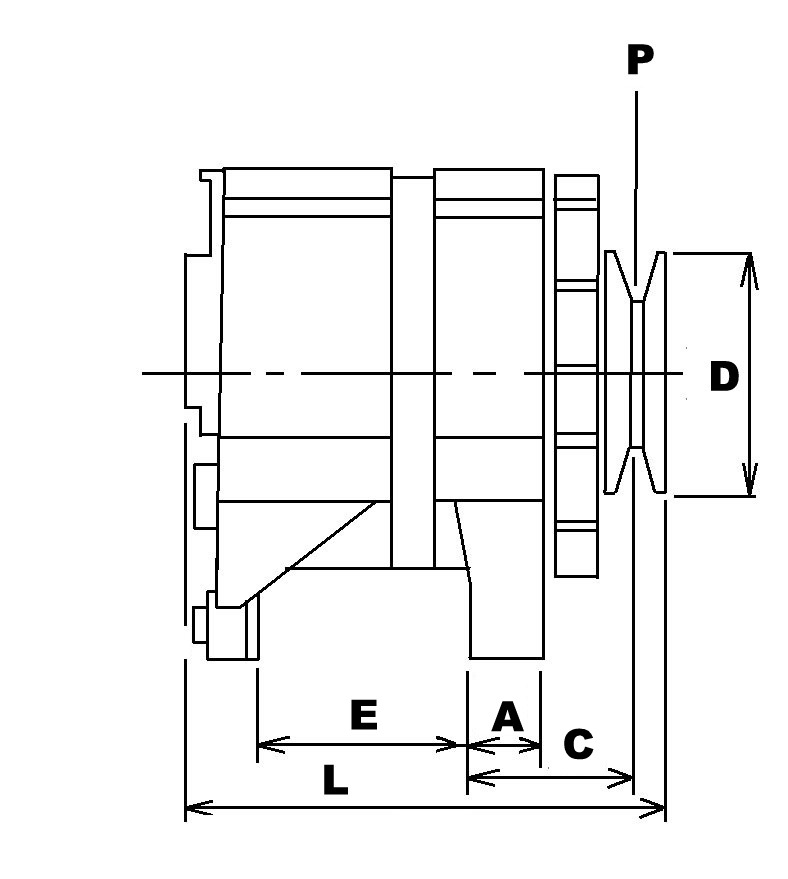

Total length mm (L)

177

Pulley dist. (C)

Mount. bracket dist. (A)

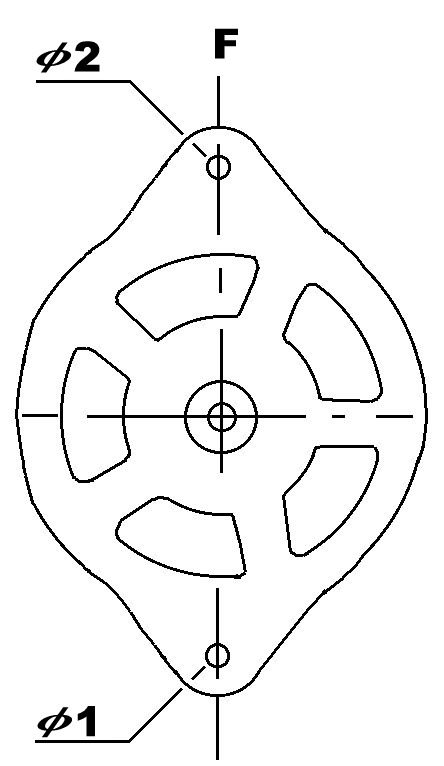

Bracket hole (Ø1)

Bracket hole (Ø2)

8,00

Belt. adj. bracket hole (Ø3)

8,00

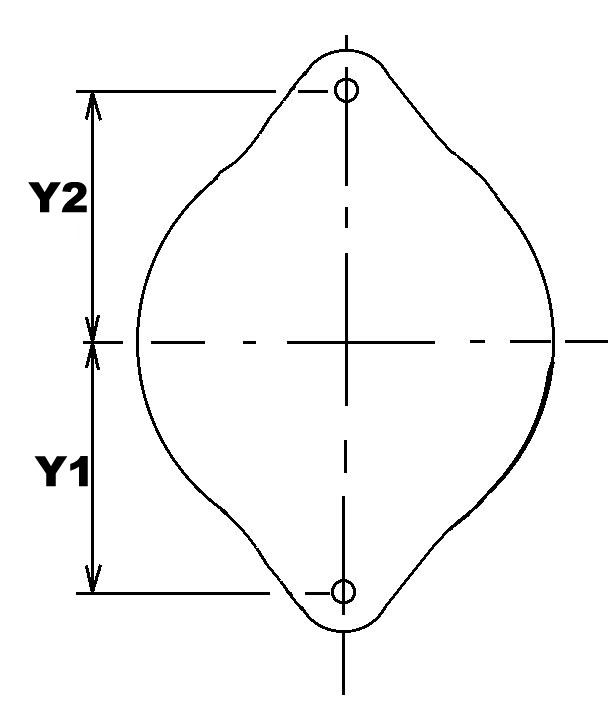

Width (Y1)

Width (Y2)

Width (E)

83,5

O.E.

A4103

A4139

CARGO

113763

DELCO R.

DRA3668

LUCAS	24479	24480	54022466	54022469
	54022524	54022606	LRB00291

MARELLI	63320349	63321466	63377460	63377461
	63377462

NIPPON	102211-8160	102211-8161	102211-8170	102211-8171
	102211-8180	102211-8181

Vehicles

AUSTIN	METRO I Fastback (XF)
Type		kW	Hp	cc	Engine	Year
1.3 Turbo		66	90	1275	12 HA85AA	01/10/1983-01/04/1990

	MONTEGO (XE)
Type		kW	Hp	cc	Engine	Year
1.3		50	68	1275	12 HL	01/10/1984-01/08/1988

1.6 LS, HL		61	83	1598	16 HC37	01/04/1984-01/08/1988

	MONTEGO Familiare (XE)
Type		kW	Hp	cc	Engine	Year
1.6 LS		61	83	1598	16 HC37	01/10/1984-01/08/1988

FORD	ESCORT III (GAA)
Type		kW	Hp	cc	Engine	Year
1.1		37	50	1117	GSE	01/08/1983-01/12/1985

1.1		40	55	1117	GLB, GMA	01/09/1980-01/08/1983

1.1		43	59	1117	GPA	01/09/1980-01/08/1983

1.3		51	69	1296	JPA	01/09/1980-01/12/1985

1.6		58	79	1597	LPA, LP1	01/09/1980-01/12/1985

1.6		71	97	1597	LUA	01/09/1980-01/10/1982

1.6 i (GAA)		66	90	1597	L4B	01/07/1985-01/12/1985

1.6 RS Turbo		97	132	1597	LNA	01/11/1984-01/12/1985

1.6 XR3i		77	105	1597	LRA, LR1	01/10/1982-01/12/1985

RS 1600i		85	115	1597	LUAE	01/05/1982-01/12/1985

	ESCORT III Cabriolet (ALD)
Type		kW	Hp	cc	Engine	Year
1.3		51	69	1296	JPA	01/09/1983-01/12/1985

1.6		58	79	1597	LPA, LP1	01/09/1983-01/12/1985

1.6 i		77	105	1597	LRA, LR1	01/09/1983-01/12/1985

	ESCORT III Express (AVA)
Type		kW	Hp	cc	Engine	Year
1.1		37	50	1117	GLB, GMA	01/03/1981-01/02/1986

1.3		51	69	1296	JPA	01/03/1981-01/02/1986

	ESCORT III Turnier (AWA)
Type		kW	Hp	cc	Engine	Year
1.1		37	50	1117	GSE	01/08/1983-01/12/1985

1.1		40	54	1117	GLB, GMA	01/09/1980-01/08/1983

1.3		51	69	1296	JPA	01/03/1981-01/12/1985

1.6		58	79	1597	LPA, LP1	01/09/1980-01/12/1985

	ESCORT IV (GAF, AWF, ABFT)
Type		kW	Hp	cc	Engine	Year
1.1		37	50	1117	GSG	01/12/1985-01/07/1990

1.3		44	60	1297	JBB, JLA (.-03.89), JLB	01/01/1986-01/07/1990

1.3		51	69	1296	JPA	01/11/1986-01/07/1988

1.3 (GAF)		46	63	1297	JBA	01/07/1988-01/10/1990

1.4		51	70	1392	FUAA	01/10/1985-01/10/1990

1.4		54	73	1392	FUC, F6B, F6D	01/01/1986-01/07/1990

1.4		55	75	1392	FUA	01/01/1986-01/07/1990

1.6		58	79	1597	LP2	01/01/1986-01/12/1988

1.6		65	88	1598	LUG	01/04/1989-01/07/1990

1.6 i		66	90	1598	LUC, L4B	01/01/1986-01/05/1990

1.6 i		75	102	1597	LJB	01/08/1989-01/07/1990

1.6 Turbo RS		97	132	1597	LNB	01/01/1986-01/07/1990

1.6 XR3i		77	105	1597	LRB, LR2	01/01/1986-01/08/1989

	ESCORT IV Cabriolet (ALF)
Type		kW	Hp	cc	Engine	Year
1.4		54	73	1392	FUC, F6B, F6D	01/02/1987-01/07/1990

1.4		55	75	1392	FUA	01/01/1986-01/07/1990

1.6		58	79	1597	LPA, LP2	01/01/1986-01/12/1987

1.6 i		66	90	1598	LUC, L4B	01/01/1986-01/07/1990

1.6 i		75	102	1597	LJB	01/08/1989-01/07/1990

1.6 XR3i		77	105	1597	LRB, LR2	01/01/1986-01/07/1990

	ESCORT IV Express (AVF)
Type		kW	Hp	cc	Engine	Year
1.1		37	50	1117	GSG	01/05/1986-01/07/1990

1.3		44	60	1297	JBB, JLA (.-03.89), JLB	01/02/1986-01/07/1990

1.3		46	63	1297	JBA	01/07/1988-01/07/1990

1.4 i		54	73	1392	FUC, F6B, F6D	01/02/1986-01/07/1990

	ESCORT IV Turnier (AWF, AVF)
Type		kW	Hp	cc	Engine	Year
1.1		37	50	1117	GSG	01/10/1985-01/09/1990

1.3		44	60	1297	JBB, JLA (.-03.89), JLB	01/01/1986-01/07/1990

1.4		51	70	1392	FUAA	01/10/1985-01/10/1990

1.4		54	73	1392	FUC, F6B, F6D	01/01/1986-01/07/1990

1.4		55	75	1392	FUA	01/01/1986-01/07/1990

1.6		58	79	1597	LP2	01/01/1986-01/07/1990

1.6 i		66	90	1598	LUC, L4B	01/01/1986-01/07/1990

	ESCORT V (AAL, ABL)
Type		kW	Hp	cc	Engine	Year
1.3		44	60	1299	J4B, J6A	01/07/1990-01/01/1995

1.4		52	71	1392	F6F, F6G	01/07/1990-01/01/1995

1.4		55	75	1392	FUH, F4B	01/09/1990-01/12/1994

1.6		66	90	1598	LUJ, LUK	01/07/1990-01/08/1992

1.6		77	105	1598	LJF	01/07/1990-01/08/1993

1.6 i 16V		65	88	1597	L1H	01/01/1994-01/01/1995

1.6 i 16V		66	90	1597	L1E	01/09/1992-01/01/1995

RS 2000		110	150	1998	N7A	01/05/1991-01/01/1995

RS 2000 4x4		110	150	1998	N7A	01/05/1991-01/01/1995

	ESCORT V Cabriolet (ALL)
Type		kW	Hp	cc	Engine	Year
1.4		52	71	1392	F6F, F6G	01/07/1990-01/04/1994

1.4 i		55	75	1392	F4B	01/07/1993-01/01/1995

1.6		77	105	1598	LJF	01/07/1990-01/08/1993

1.6 16V XR3i		66	90	1597	L1E	01/12/1992-01/01/1995

1.6 i 16V		65	88	1597	L1H	01/02/1994-01/01/1995

	ESCORT V Express (AVF)
Type		kW	Hp	cc	Engine	Year
1.3		46	63	1299	JBD	01/07/1990-01/12/1994

1.4		52	71	1391	F6F, F6G	01/07/1990-01/12/1994

	ESCORT V Tre volumi (AFL)
Type		kW	Hp	cc	Engine	Year
1.3		44	60	1299	J4B, J6A	01/08/1993-01/01/1995

1.4		52	71	1392	F6F, F6G	01/08/1993-01/04/1994

1.4		55	75	1392	FUH, F4B	01/08/1993-01/01/1995

1.6 i 16V		65	88	1597	L1H	01/01/1994-01/01/1995

1.6 i 16V		66	90	1597	L1E, L1K	01/08/1993-01/01/1995

	ESCORT V Turnier (ANL) \| ESCORT NOMADE
Type		kW	Hp	cc	Engine	Year
1.3		44	60	1299	J4B, J6A	01/09/1991-01/01/1995

1.4		52	71	1392	F6F, F6G	01/07/1990-01/01/1995

1.4		55	75	1392	FUH, F4B	01/01/1994-01/01/1995

1.6		66	90	1598	LUJ, LUK	01/07/1990-01/08/1992

1.6		77	105	1598	LJF	01/07/1990-01/09/1992

1.6 i 16V		65	88	1597	L1H	01/01/1994-01/01/1995

1.6 i 16V		66	90	1597	L1E	01/09/1992-01/01/1995

	ESCORT VI (GAL, AAL, ABL)
Type		kW	Hp	cc	Engine	Year
1.3		44	60	1299	J4B, J6A	01/01/1995-01/10/1998

1.4		55	75	1392	FUH, F4B	01/01/1995-01/10/1998

RS 2000		110	150	1998	N7A	01/02/1995-01/02/1998

RS 2000 4x4		110	150	1998	N7A	01/02/1995-01/10/1998

	ESCORT VI Cabriolet (ALL)
Type		kW	Hp	cc	Engine	Year
1.4		55	75	1392	F4B	01/02/1995-01/08/1998

	ESCORT VI Furgone/familiare (AVL)
Type		kW	Hp	cc	Engine	Year
1.4		54	73	1392	F4B	01/01/1995-01/08/2000

	ESCORT VI Tre volumi (GAL, AFL)
Type		kW	Hp	cc	Engine	Year
1.3		44	60	1299	J4B, J6A	01/01/1995-01/02/1999

1.4		55	75	1392	FUH, F4B	01/01/1995-01/02/1999

	ESCORT VI Turnier (GAL, ANL) \| ESCORT NOMADE
Type		kW	Hp	cc	Engine	Year
1.3		44	60	1299	J4B, J6A	01/01/1995-01/01/1999

1.4		55	75	1392	FUH, F4B	01/01/1995-01/02/1999

	FIESTA Cassone/Limousine spaziosa (F3L, F5L) \| COURIER
Type		kW	Hp	cc	Engine	Year
1.3		44	60	1299	J6B	01/09/1991-01/02/1996

	FIESTA Cassone/Limousine spaziosa (J5_, J3_) \| COURIER
Type		kW	Hp	cc	Engine	Year
1.3		44	60	1299	J4C, J4J, J4L, J4Q, J4R, J4T	01/02/1996-01/08/2003

	FIESTA Furgone/hatchback (FVD)
Type		kW	Hp	cc	Engine	Year
1.0		33	45	957	TKB	01/08/1983-01/11/1989

1.4		52	71	1392	F6A	01/09/1986-01/09/1989

	FIESTA Furgone/hatchback (WFVT)
Type		kW	Hp	cc	Engine	Year
1.0 (WFVT)		29	40	957	TKA	01/10/1977-01/11/1986

1.1 (WFVT)		39	53	1117	GLA, GL1	01/10/1977-01/11/1986

	FIESTA I (GFBT)
Type		kW	Hp	cc	Engine	Year
0.9		29	40	957	TKA, TKW	01/05/1976-01/08/1983

0.9		33	45	957	TLA	01/05/1976-01/08/1983

1.1		39	53	1117	GLA	01/05/1976-01/08/1983

1.1 (WFBT)		40	55	1117	GLW	01/02/1981-01/08/1983

1.3		49	66	1297	J3E	01/08/1977-01/08/1983

1.6 XR2		62	84	1598	L3E	01/08/1981-01/08/1983

	FIESTA II (FBD)
Type		kW	Hp	cc	Engine	Year
1.0 (FBD)		33	45	957	TKB	01/09/1983-01/02/1989

1.1 (FBD)		36	49	1117	GSH	01/05/1986-01/02/1989

1.1 (FBD)		37	50	1117	GLC, GSF	01/09/1983-01/02/1989

1.3 (FBD)		51	69	1298	JPC	01/09/1983-01/01/1987

1.4		51	69	1392	FUBA	01/09/1983-01/01/1987

1.4 (FBD)		52	71	1392	F6A, F6C	01/10/1986-01/02/1989

1.4 (FBD)		54	73	1392	FUD	01/02/1987-01/02/1989

1.4 (FBD)		55	75	1392	FUB	01/10/1985-01/11/1989

1.6 XR2 (FBD)		70	95	1597	LUD	01/03/1984-01/02/1989

1.6 XR2 (FBD)		71	97	1597	LUB	01/04/1984-01/02/1989

	FIESTA III (GFJ)
Type		kW	Hp	cc	Engine	Year
1.0		33	45	1001	TLB	01/03/1989-01/12/1995

1.1		37	50	1119	G6A	01/03/1989-01/12/1995

1.1		40	55	1119	GUD, GUE	01/03/1989-01/12/1995

1.3		44	60	1299	JBC	01/03/1989-01/12/1992

1.3		44	60	1299	JBB, JBC	01/03/1989-01/12/1995

1.3 Cat		44	60	1299	J6B	01/05/1991-01/01/1997

	FIESTA IV (JA_, JB_)
Type		kW	Hp	cc	Engine	Year
1.3 i		37	50	1299	JJA, JJC, JJE, JJJ, JJK, JJM	01/08/1995-01/01/2002

1.3 i		44	60	1299	JBC, J4C, J4J, J4L, J4Q, J4R, J4T	01/08/1995-01/01/2002

	GRANADA II (GU)
Type		kW	Hp	cc	Engine	Year
2.0		66	90	1998	NYP	01/08/1977-01/08/1985

2.3		79	107	2294	YYH	01/08/1977-01/06/1979

2.3		82	112	2294	YYU	01/06/1981-01/08/1985

2.3		84	114	2294	YYP	01/06/1979-01/08/1985

2.8		97	132	2792	PYU	01/06/1981-01/08/1985

2.8		99	135	2792	PYA	01/08/1977-01/08/1985

	GRANADA Turnier (GNU)
Type		kW	Hp	cc	Engine	Year
2.0		66	90	1998	NYP	01/08/1977-01/06/1985

2.3		79	107	2294	YYH	01/08/1977-01/06/1979

2.3		82	111	2294	YYU	01/06/1981-01/06/1985

2.3		84	114	2294	YYP	01/06/1979-01/08/1985

2.8		97	132	2792	PYU	01/06/1981-01/08/1985

2.8		99	135	2792	PYA	01/08/1977-01/08/1985

	ORION I (AFD)
Type		kW	Hp	cc	Engine	Year
1.3		51	69	1296	JPA	01/07/1983-01/03/1986

1.6		58	79	1597	LPA, LP1	01/07/1983-01/03/1986

1.6 i		77	105	1597	LRA, LR1	01/07/1983-01/03/1986

	ORION II (AFF)
Type		kW	Hp	cc	Engine	Year
1.3		44	60	1297	JBB, JLA (.-03.89), JLB	01/12/1985-01/07/1990

1.4		52	72	1392	FUAA	01/03/1986-01/07/1990

1.4		54	73	1392	FUC	01/01/1986-01/07/1990

1.4		55	75	1392	FUA	01/12/1985-01/07/1990

1.4 Cat		54	73	1392	F6B, F6D	01/02/1987-01/07/1990

1.6		66	90	1597	LUC	01/12/1985-01/07/1990

1.6 i		75	102	1597	LJB	01/02/1986-01/07/1990

1.6 i		77	105	1597	LRB	01/03/1986-01/07/1990

1.6 i Cat		66	90	1597	L4B	01/03/1986-01/07/1990

	ORION III (GAL)
Type		kW	Hp	cc	Engine	Year
1.3		44	60	1299	J4B, J6A	01/07/1990-01/12/1993

1.4		52	71	1391	F6F, F6G	01/07/1990-01/12/1993

1.4		54	73	1392	FUH	01/07/1990-01/12/1993

1.6		66	90	1598	LUJ, LUK	01/07/1990-01/12/1992

1.6 i		77	105	1598	LJF	01/07/1990-01/09/1992

1.6 i 16V		66	90	1597	L1E	01/07/1992-01/12/1993

	SCORPIO I (GAE, GGE) \| GRANADA
Type		kW	Hp	cc	Engine	Year
2.8 i		110	150	2792	PRE	01/04/1985-01/11/1986

2.8 i 4x4		110	150	2792	PRE	01/10/1985-01/11/1986

	SIERRA I Hatchback (GBC)
Type		kW	Hp	cc	Engine	Year
2.3		84	114	2294	YYT	01/08/1982-01/12/1986

2.8 i XR 4x4		107	146	2792	PR5, PR6	01/09/1983-01/12/1986

2.8 XR 4x4		110	150	2792	PRT	01/02/1985-01/12/1986

2.8 XR4i		105	143	2792	PR6	01/08/1982-01/12/1986

2.8 XR4i		110	150	2792	PRT	01/08/1982-01/12/1986

	SIERRA II Hatchback (GBC, GBG)
Type		kW	Hp	cc	Engine	Year
2.8 i XR 4x4		110	150	2792	PRG (01.87-08.88)	01/01/1987-01/08/1988

	SIERRA II Turnier (BNG)
Type		kW	Hp	cc	Engine	Year
2.8 4x4		110	150	2792	PRG (01.87-08.88)	01/01/1987-01/08/1988

	SIERRA Turnier (BNC)
Type		kW	Hp	cc	Engine	Year
2.3		84	114	2294	YYT	01/08/1982-01/12/1986

2.8 XR4i		105	143	2792	PR6	01/08/1982-01/12/1986

	TAUNUS III Turnier (GBNS) \| CORTINA
Type		kW	Hp	cc	Engine	Year
2.0		66	90	1999	NWR	01/07/1979-01/07/1982

LAND ROVER	DISCOVERY I (LJ)
Type		kW	Hp	cc	Engine	Year
3.5 4x4 (SALLJG)		113	154	3531	22 D	01/06/1989-01/06/1994

4.0 4x4		136	185	3947	37 L	01/09/1993-01/10/1998

	RANGE ROVER I
Type		kW	Hp	cc	Engine	Year
2.4 TD 4x4		83	113	2393	11 A	01/04/1986-01/07/1994

3.5 4x4		107	146	3528	31 D	01/01/1987-01/09/1990

3.5 Vogue 4x4		93	126	3528	11 D	01/08/1981-01/09/1990

3.5 Vogue 4x4		120	163	3528	24 D, 25 D	01/10/1985-01/09/1990

LDV	FREIGHT ROVER SHERPA Autobus
Type		kW	Hp	cc	Engine	Year
2.0		64	87	1994	G20A	01/04/1985-01/03/1989

3.5		103	140	3528		01/07/1984-01/03/1989

	SHERPA Autobus (FR)
Type		kW	Hp	cc	Engine	Year
1.8		50	68	1760	G18A	01/01/1983-01/09/1988

2.6 D		59	80	2594	K25D	01/01/1983-01/09/1988

MG	MGR V8
Type		kW	Hp	cc	Engine	Year
3.9		140	190	3947	V8RE	01/09/1992-01/12/1995

	MONTEGO
Type		kW	Hp	cc	Engine	Year
2.0 EFi		86	117	1994	20HI	01/04/1984-01/09/1990

2.0 Turbo		110	150	1994	20 HT	01/10/1984-01/09/1990

ROVER	100 / METRO Hatchback (XP)
Type		kW	Hp	cc	Engine	Year
114 GSi		76	103	1396	14 K4F	01/10/1994-01/10/1995

114 GTI 16V		69	94	1396	14 K4C, 14 K4D	01/03/1990-01/08/1991

114 GTI 16V		76	103	1396	14 K4F	01/08/1991-01/12/1998

114 GTI/GT 16V Cat		66	90	1396	14 K4C, 14 K4D	01/03/1990-01/12/1998

114 S/L/GTA		55	75	1396	14 K2A, 14 K2D	01/03/1990-01/12/1998

	200 II Cabriolet (XW)
Type		kW	Hp	cc	Engine	Year
214 1.4		66	90	1396	14 K4C, 14 K4D	01/01/1992-01/11/1999

214 1.4i 16V		76	103	1396	14 K4F	01/01/1993-01/11/1999

	200 II Hatchback (XW)
Type		kW	Hp	cc	Engine	Year
214		55	75	1396	14 K2A, 14 K2D	01/09/1993-01/12/1995

214 GSi/Si		70	95	1396	14 K4C	01/01/1990-01/10/1995

214 GSi/Si		76	103	1396	14 K4F	01/12/1992-01/10/1995

214 Si/Gsi		66	90	1396	14 K4C, 14 K4D	01/10/1989-01/10/1995

	400 II (XW)
Type		kW	Hp	cc	Engine	Year
414 GSI/SI		66	90	1396	14 K4C, 14 K4D	01/04/1990-01/04/1995

414 GSI/SI Cat		76	103	1396	14 K4F	01/10/1992-01/04/1995

	MONTEGO
Type		kW	Hp	cc	Engine	Year
1.6		61	83	1598	16 HL	01/10/1990-01/09/1992

2.0 GTi		86	117	1994	20 H	01/02/1985-01/10/1991

	MONTEGO Estate (XE)
Type		kW	Hp	cc	Engine	Year
1.3		50	68	1275	12 HL	01/10/1984-01/10/1988

1.6		61	83	1598	16 HL	01/10/1990-01/09/1992

2.0 GTi		86	117	1994	20 H	01/10/1988-01/10/1991

AG1312

ALTERNATOR

AG1312

AG1312RB
