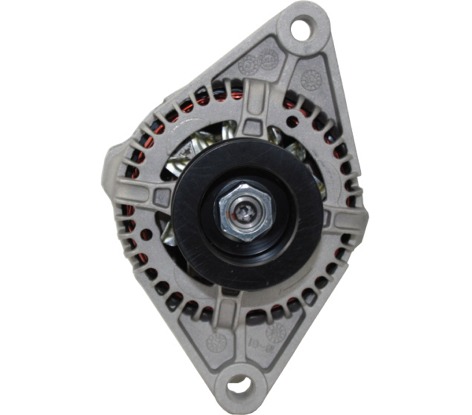

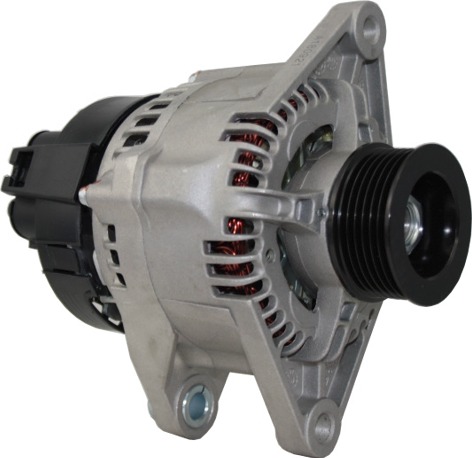

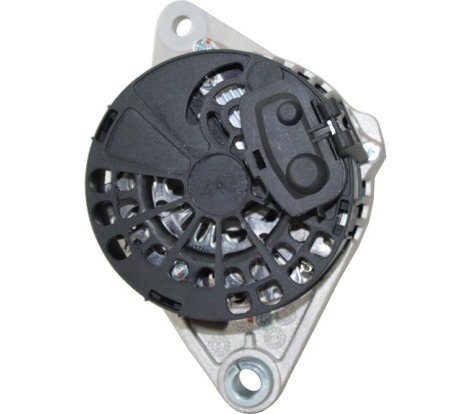

AG0213		ALTERNATOR

Aftermarket/OE/Rebuild
AG0213

Technical sheets

Voltage (V)

Amp (Amp)

100

Pulley

POLYV6

Rotation

DESTRA

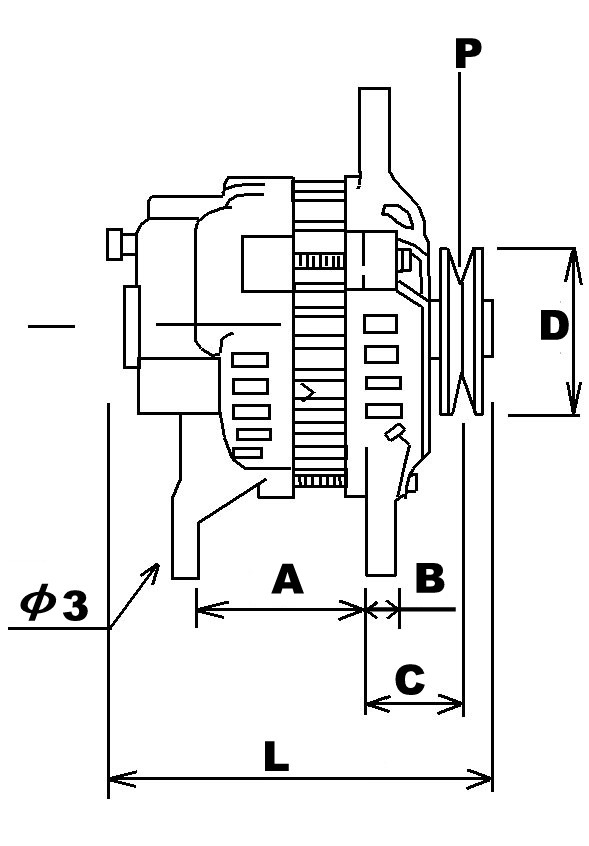

Total length mm (L)

202.90

Pulley dist. (C)

43.40

Width/holder arm (B)

22.50

Mount. bracket dist. (A)

54.00

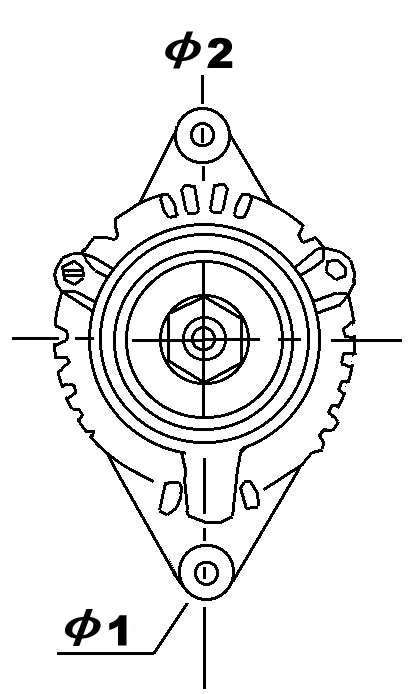

Bracket hole (Ø1)

12.40

Bracket hole (Ø2)

10.20

Pulley dia. (D)

61.80

Grooves/pulley (P)

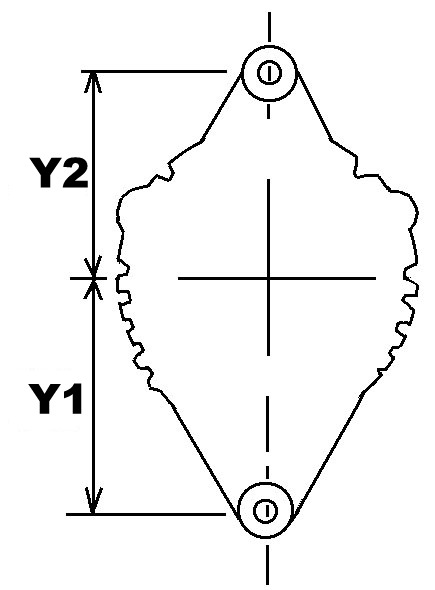

Width (Y1)

90.00

Width (Y2)

90.00

O.E.

ALFA ROMEO

60812713

A4023

A4025

A4027

A4130

BOSCH

0986040631

0986040641

0986040671

CARGO	111413	111414	111725	CA1159IR
	CA1160IR	CA1313IR

DELCO R.

DRA3394

DRA3396

DRA3403

DRA3639

FIAT	46231671	46231724	46412681	46428730
	46428731	46430527	46430528	46430529
	46430531	46448433	46448434	46763532
	46774420	60812814

LANCIA

46412681

46428730

46448434

LUCAS	LRA01742	LRA02709	LRA2709	LRB00328
	LRB00330	LRB328	LRB330

MARELLI	063321802	63320257	63320306	63320509
	63321278	63321287	63321311	63321316
	63321330	63321611	63321612	63321614
	63321640	63321802	63321806	63321809
	63321839	943321611	943321612	MAN804
	MAN80S	MAN814

VALEO

437635

437670

437679

Vehicles

ALFA ROMEO	145 (930_)
Type		kW	Hp	cc	Engine	Year
1.4 i.e. 16V T.S. (930.A3A)		76	103	1370	AR 33503 (12.96-.), AR 38501 (12.96-.)	01/12/1996-01/01/2001

1.6 16V T.S. (930.A2C)		82	112	1598	AR 32102	01/09/1997-01/12/2000

1.6 i.e. 16V T.S. (930.A2)		88	120	1598	AR 38201 (12.96-.), AR 67601	01/12/1996-01/01/2001

1.8 i.e. 16V (930.A1A)		106	144	1747	AR 32201 (03.98-.)	01/03/1998-01/01/2001

1.8 i.e. 16V T.S. (930.A1A)		103	140	1747	AR 38401, AR 67106, AR 67199	01/12/1996-01/12/1998

1.9 JTD (930.A4B)		77	105	1910	AR 32302 (02.99-.)	01/02/1999-01/01/2001

2.0 16V (930.A5)		114	155	1970	AR 32301 (03.98-.)	01/03/1998-01/01/2001

2.0 16V T.S. (930.A5)		110	150	1970	AR 67204	01/10/1995-01/01/2001

	146 (930_)
Type		kW	Hp	cc	Engine	Year
1.4 i.e. 16V T.S. (930.B3A)		76	103	1370	AR 33503 (11.96-.), AR 38501 (12.96-.)	01/11/1996-01/01/2001

1.6 16V T.S. (930.B2C)		82	112	1598	AR 32102	01/09/1997-01/12/2000

1.6 i.e. 16V T.S. (930.B2B, 930.B2C)		88	120	1598	AR 38201 (11.96-.), AR 67601	01/11/1996-01/10/2001

1.8 i.e. 16V T.S. (930.B1A)		103	140	1747	AR 38401, AR 67106	01/11/1996-01/01/2001

1.8 i.e. 16V T.S. (930.B1A)		106	144	1747	AR 32201 (03.98-.)	01/03/1998-01/01/2001

1.9 JTD (930.B4B)		77	105	1910	AR 32302 (02.99-.)	01/02/1999-01/01/2001

2.0 16V (930.B5)		114	155	1970	AR 32301 (03.98-.)	01/03/1997-01/10/2001

2.0 16V T.S. (930.B5)		110	150	1970	AR 67204	01/10/1995-01/01/2001

	147 (937_)
Type		kW	Hp	cc	Engine	Year
1.6 16V T.SPARK (937.AXA1A, 937.AXB1A, 937.BXB1A)		88	120	1598	AR 32104	01/01/2001-01/03/2010

1.6 16V T.SPARK ECO (937.AXA1A, 937.BXA1A)		77	105	1598	AR 37203 (01.01-.)	01/01/2001-01/03/2010

1.9 JTD (937.AXD1A, 937.BXD1A, 937.AXV1A, 937.BXB1A,...		85	115	1910	937 A2.000 (.-08.05), 939 A7.000 (09.05-.)	01/04/2001-01/03/2010

2.0 16V T.SPARK (937.AXA1, 937.AXC1, 937.BXC1)		110	150	1970	AR 32310	01/01/2001-01/03/2010

	155 (167_)
Type		kW	Hp	cc	Engine	Year
1.6 16V T.S. (167.A6A)		88	120	1598	AR 67601	01/05/1996-01/12/1997

1.7 T.S. 16V (167.A4N)		103	140	1747	AR 67106	01/05/1996-01/12/1997

1.8 T.S. (167.A4C, 167.A)		77	105	1756	AR 67402	01/02/1992-01/12/1997

2.0 T.S. 16V (167.A2G)		110	150	1970	AR 67204, AR 67299	01/03/1995-01/12/1997

	156 (932_)
Type		kW	Hp	cc	Engine	Year
1.6 16V T.SPARK (932.A4, 932.A4100)		88	120	1598	AR 32102 (.-09.00), AR 32103 (09.00-.), AR 32104 (09.00-.), AR 67601 (.-09.00)	01/09/1997-01/09/2005

1.6 16V T.SPARK (932A4)		82	112	1598	AR 32102	01/09/1997-01/09/2005

1.8 16V T.SPARK (932.A3)		106	144	1747	AR 32201 (09.97-.)	01/09/1997-01/10/2000

1.8 16V T.SPARK (932.A3100)		103	140	1747	AR 32205	01/09/1997-01/09/2005

1.9 JTD (932B2)		77	105	1910	AR 32302 (09.97-.)	01/09/1997-01/10/2000

1.9 JTD 16V (932AXE00)		103	140	1910	192 A5.000	01/11/2002-01/09/2005

2.0 16V T.SPARK (932A2)		114	155	1970	AR 32301 (09.97-.), AR 32310	01/09/1997-01/06/2002

2.0 16V T.SPARK (932A21__)		110	150	1970	AR 32310	01/10/2000-01/03/2002

2.4 JTD (932A1B__)		103	140	2387	839 A6.000	01/10/2000-01/09/2005

2.4 JTD (932AXC)		110	150	2387	841 C000	01/03/2002-01/09/2005

2.4 JTD (932AXF00)		129	175	2387	841 G.000	01/10/2003-01/09/2005

2.4 JTD (932B1)		100	136	2387	AR 32501 (09.97-.)	01/09/1997-01/09/2003

	156 Sportwagon (932_)
Type		kW	Hp	cc	Engine	Year
1.6 16V T.SPARK. (932B4100)		88	120	1598	AR 32102 (.-09.00), AR 32103 (09.00-.), AR 32104 (09.00-.), AR 67601 (.-09.00)	01/05/2000-01/05/2006

1.8 16V T.SPARK (932A3)		106	144	1747	AR 32201 (05.00-.)	01/05/2000-01/10/2000

1.8 16V T.SPARK (932B31__)		103	140	1747	AR 32205	01/02/1997-01/05/2006

1.9 JTD (932B2)		77	105	1910	AR 32302 (05.00-.)	01/05/2000-01/10/2000

2.0 16V T.SPARK (932A2)		114	155	1970	AR 32301 (05.00-.), AR 32310	01/05/2000-01/06/2002

2.0 16V T.SPARK (932B21__)		110	150	1970	AR 32310	01/10/2000-01/03/2002

2.4 JTD (932.B1B00)		103	140	2387	839 A6.000	01/10/2000-01/05/2006

2.4 JTD (932.BXC00)		110	150	2387	841 C000	01/03/2002-01/05/2006

2.4 JTD (932B1)		100	136	2387	AR 32501 (05.00-.)	01/05/2000-01/09/2003

2.4 JTD (932BXF00)		129	175	2387	841 G.000	01/10/2003-01/05/2006

	166 (936_)
Type		kW	Hp	cc	Engine	Year
2.0 T.Spark (936A3A__)		114	155	1970	AR 34103 (09.98-.)	01/09/1998-01/10/2000

2.0 T.Spark (936A3B00)		110	150	1970	AR 36301	01/10/2000-01/06/2007

2.4 JTD (936A2B__)		103	140	2387	839 A6.000	01/10/2000-01/06/2007

2.4 JTD (936AXA00, 936A3B00)		110	150	2387	841 C000	01/04/2002-01/06/2007

2.4 JTD (936AXC00)		132	180	2387	841 M.000	01/07/2006-01/06/2007

2.4 JTD (936AXC00, 936AXG00)		136	185	2387	841 M.000, 936 B.000	01/07/2005-01/06/2007

	GTV (916_)
Type		kW	Hp	cc	Engine	Year
1.8 16V (916C3)		106	144	1747	AR 32201 (05.98-.)	01/05/1998-01/10/2005

2.0 JTS (916CXA00)		121	165	1970	937 A1.000	01/04/2003-01/10/2005

2.0 T.SPARK 16V (916.C2__, 916C2C00)		110	150	1970	AR 16201, AR 32310 (10.00-.)	01/06/1995-01/10/2005

2.0 T.SPARK 16V (916C2C)		114	155	1970	AR 32301 (05.98-.)	01/09/1997-01/03/2003

	SPIDER (916_)
Type		kW	Hp	cc	Engine	Year
1.8 16V (916S3)		106	144	1747	AR 32201 (05.98-.)	01/05/1998-01/04/2005

2.0 T.SPARK 16V (916S2B)		114	155	1970	AR 32301 (05.98-.)	01/05/1998-01/08/2000

FIAT	BARCHETTA (183_)
Type		kW	Hp	cc	Engine	Year
1.8 16V		96	130	1747	183 A1.000, 188 A6.000 (05.98-.)	01/04/1995-01/05/2005

	BRAVA (182_)
Type		kW	Hp	cc	Engine	Year
1.8 GT 16V (182.BC)		83	113	1747	182 A2.000	01/10/1995-01/08/2001

1.9 JTD 105		77	105	1910	182 B4.000	01/12/1998-01/10/2001

1.9 TD 100 S (182.BF)		74	100	1910	182 A7.000	01/03/1996-01/10/2001

1.9 TD 75 S (182.BF)		55	75	1910	182 A8.000	01/03/1996-01/10/2001

	BRAVO I (182_)
Type		kW	Hp	cc	Engine	Year
1.8 GT (182.AC)		83	113	1747	182 A2.000	01/10/1995-01/10/2001

1.9 JTD 105		77	105	1910	182 B4.000	01/12/1998-01/10/2001

1.9 TD 100 S (182.AF)		74	100	1910	182 A7.000	01/03/1996-01/10/2001

1.9 TD 75 S (182.AF)		55	75	1910	182 A8.000	01/03/1996-01/10/2001

	COUPE (175_)
Type		kW	Hp	cc	Engine	Year
1.8 16V		96	131	1747	183 A1.000	01/03/1996-01/08/2000

	DUCATO Autobus (230_)
Type		kW	Hp	cc	Engine	Year
1.9 TD		66	90	1905	DHX, DHX (XUD9TF/L)	01/04/1998-01/04/2002

1.9 TD Combinato		59	80	1929	230 A4.000	01/08/1994-01/04/2002

1.9 TD Panorama/Combinato		60	82	1929	230 A3.000	01/03/1994-01/04/2002

	DUCATO Furgone (230_)
Type		kW	Hp	cc	Engine	Year
1.9 TD		60	82	1929	230 A3.000	01/03/1994-01/04/2002

1.9 TD		66	90	1905	DHX, DHX (XUD9TF/L)	01/04/1998-01/04/2002

1.9 TD CAT		59	80	1929	230 A4.000	01/08/1994-01/04/2002

	DUCATO Pianale piatto/Telaio (230_)
Type		kW	Hp	cc	Engine	Year
1.9 TD		60	82	1929	230 A3.000	01/03/1994-01/04/2002

1.9 TD		66	90	1905	DHX, DHX (XUD9TF/L)	01/04/1998-01/04/2002

1.9 TD CAT		59	80	1929	230 A4.000	01/08/1994-01/04/2002

	IDEA (350_)
Type		kW	Hp	cc	Engine	Year
1.9 JTD		74	101	1910	188 B2.000	01/01/2004-

	MAREA (185_)
Type		kW	Hp	cc	Engine	Year
1.8 115 16V		83	113	1747	182 A2.000	01/09/1996-01/05/2002

1.9 JTD 105 (185AXN1A)		77	105	1910	182 B4.000	01/12/1998-01/12/2002

1.9 JTD 110 (185AXT1A)		81	110	1910	186 A6.000	01/09/2000-01/08/2002

1.9 TD 75		55	75	1910	182 A8.000	01/09/1996-01/05/2002

2.4 TD 125		91	125	2387	185 A2.000	01/09/1996-01/04/1999

	MAREA Weekend (185_)
Type		kW	Hp	cc	Engine	Year
1.8 115 16V		83	113	1747	182 A2.000	01/09/1996-01/05/2002

1.9 JTD 105 (185BXN1A)		77	105	1910	182 B4.000	01/12/1998-01/12/2002

1.9 JTD 110 (185BXT1A)		81	110	1910	186 A6.000	01/09/2000-01/08/2002

1.9 TD 75		55	75	1910	182 A8.000	01/09/1996-01/05/2002

2.4 TD 125		91	125	2387	185 A2.000	01/09/1996-01/04/1999

	MULTIPLA (186_)
Type		kW	Hp	cc	Engine	Year
1.9 JTD 105 (186AXB1A)		77	105	1910	182 B4.000	01/04/1999-01/06/2010

1.9 JTD 110		81	110	1910	186 A6.000	01/03/2001-01/07/2002

	PUNTO (188_)
Type		kW	Hp	cc	Engine	Year
1.8 130 HGT (188.738, .718)		96	130	1747	183 A1.000, 188 A6.000	01/09/1999-01/03/2012

1.9 DS 60 (188.031, .051, .231, .251)		44	60	1910	188 A3.000	01/09/1999-01/03/2012

1.9 JTD 80 (188.237, .257, .337, .357)		59	80	1910	188 A2.000	01/09/1999-01/03/2012

	PUNTO Furgone/hatchback (188_)
Type		kW	Hp	cc	Engine	Year
1.9 JTD		63	86	1910	188 A7.000	01/02/2000-01/10/2009

	STILO (192_)
Type		kW	Hp	cc	Engine	Year
1.8 16V (192AXC1A, 192BXC1A)		98	133	1747	192 A4.000	01/10/2001-01/04/2007

1.9 JTD (192_XE1A)		85	115	1910	192 A1.000, 192 B4.000, 937 A7.000	01/10/2001-01/11/2006

1.9 JTD (192_XF1A)		59	80	1910	192 A3.000	01/02/2002-01/11/2006

2.4 20V (192_XD1A, 192AXD12)		125	170	2446	192 A2.000	01/10/2001-01/04/2007

	STILO Multi Wagon (192_)
Type		kW	Hp	cc	Engine	Year
1.8 16V		98	133	1747	192 A4.000	01/01/2003-01/08/2008

1.9 JTD		59	80	1910	192 A3.000	01/01/2003-01/08/2008

1.9 JTD		85	115	1910	192 A1.000, 192 B4.000, 937 A7.000	01/01/2003-01/08/2008

1.9 JTD		103	140	1910	192 A5.000	01/01/2004-01/08/2008

LANCIA	DEDRA (835_)
Type		kW	Hp	cc	Engine	Year
1.8 16V LE (835FG)		83	113	1747	182 A2.000 (03.96-.)	01/03/1996-01/07/1999

1.8 GT 16V (835EH)		96	131	1747	183 A1.000 (03.96-.)	01/03/1996-01/07/1999

	DEDRA SW (835_)
Type		kW	Hp	cc	Engine	Year
1.8 16V LE (835FG)		83	113	1747	182 A2.000 (03.96-.)	01/03/1996-01/07/1999

1.8 GT 16V (835EH)		96	131	1747	183 A1.000 (03.96-.)	01/03/1996-01/07/1999

	DELTA II (836_)
Type		kW	Hp	cc	Engine	Year
1.8 i.e. 16V (836AQ)		83	113	1747	182 A2.000 (03.96-.)	01/03/1996-01/08/1999

1.8 i.e. 16V GT (836AR)		96	131	1747	183 A1.000 (03.96-.)	01/03/1996-01/08/1999

	KAPPA (838_)
Type		kW	Hp	cc	Engine	Year
2.0 20V (838AA1AA)		107	146	1998	838 A1.000	01/10/1994-01/10/2001

2.0 20V (838AG1AA, 838AG11A)		114	155	1998	838 A6.000	01/07/1996-01/10/2001

2.4 20V (838AC1AA, 838AC11A)		129	175	2446	838 A2.000, 838 A2.027	01/08/1994-01/10/2001

2.4 JTD (838AL1AA)		100	136	2387	838 A8.000	01/06/1998-01/10/2001

2.4 T.DS (838AE1AA, 838AH1AA)		91	124	2387	838 A3.000, 838 A7.000	01/08/1994-01/10/2001

	KAPPA Coupé (838_)
Type		kW	Hp	cc	Engine	Year
2.0 16V Turbo (838CB)		151	205	1995	838 A4.000	01/11/1996-01/03/2001

2.0 20V Turbo (838CM)		162	220	1998	175 A3.000	01/06/1998-01/03/2001

	KAPPA SW (838_)
Type		kW	Hp	cc	Engine	Year
2.0 20V (838BG1AA)		114	155	1998	838 A6.000	01/07/1996-01/10/2001

2.4 20V (838BC1AA, 838BC11A)		129	175	2446	838 A2.000	01/07/1996-01/10/2001

2.4 T.DS (838BH1AA)		91	124	2387	838 A3.000, 838 A7.000	01/07/1996-01/10/2001

	LYBRA (839_)
Type		kW	Hp	cc	Engine	Year
1.8 16V (839AXB1A, 839AXG1A)		96	131	1747	839 A4.000, 839 A7.000 (09.00-.), 839 A9.000	01/07/1999-01/10/2005

1.9 JTD (839.AXI1A, 839.AXN1A, 839.CXL1A)		85	116	1910	937 A2.000	01/05/2001-01/10/2005

1.9 JTD (839AXD1A)		77	105	1910	AR 32302	01/07/1999-01/09/2000

1.9 JTD (839AXI1A)		81	110	1910	AR 37101	01/09/2000-01/05/2001

2.4 JTD (839AXE1A)		99	135	2387	AR 32501, 839 A5.000	01/07/1999-01/02/2001

2.4 JTD (839AXL1A)		103	140	2387	839 A6.000	01/09/2000-01/05/2002

	LYBRA SW (839_)
Type		kW	Hp	cc	Engine	Year
1.8 16V (839BXB1A, 839BXG1A)		96	131	1747	839 A4.000, 839 A7.000 (09.00-.)	01/07/1999-01/10/2005

1.9 JTD (839.BXI1A, 839.BXN1A, 839.CXL1A)		85	116	1910	937 A2.000	01/05/2001-01/10/2005

1.9 JTD (839BXD1A)		77	105	1910	AR 32302	01/07/1999-01/09/2001

1.9 JTD (839BXI1A)		81	110	1910	AR 37101	01/09/2000-01/05/2001

2.4 JTD (839.BXE1A)		110	150	2387	841 C.000	01/05/2002-01/10/2005

2.4 JTD (839BXE1A)		99	135	2387	AR 32501, 839 A5.000	01/10/1999-01/09/2000

2.4 JTD (839BXL1A)		103	140	2387	839 A6.000	01/09/2000-01/10/2005

AG0213

ALTERNATOR

AG0213
